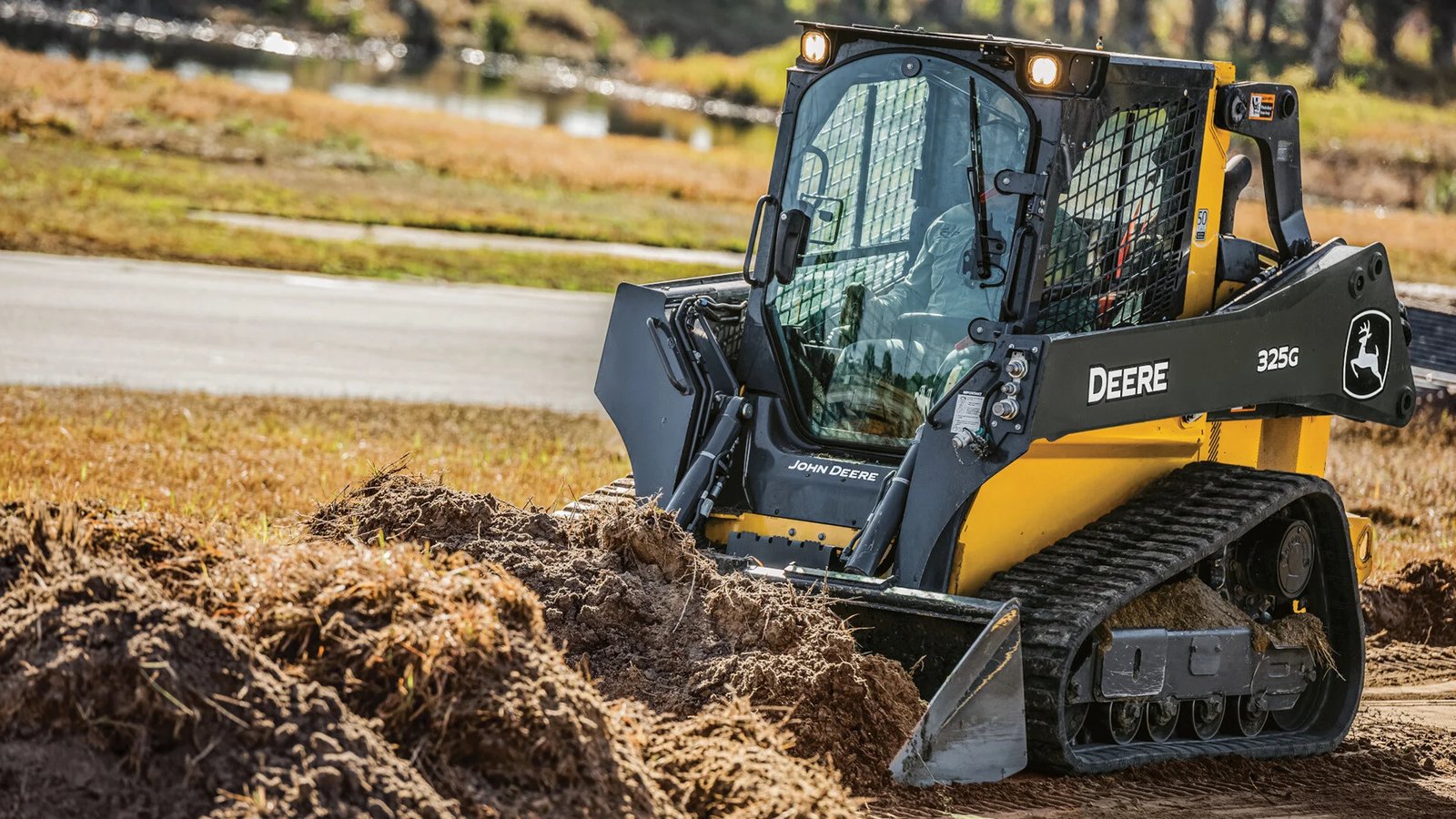

Deere 325G Tracked Skid Steer

Overview

The John Deere 325G is a vertical-lift compact track loader powered by a turbocharged Yanmar 4TNV98CT engine with 3.3L displacement, producing 74 gross horsepower. With a rated operating capacity of 2,590 lbs and maximum travel speed of 8.2 mph, this machine delivers reliable performance for landscaping, construction, and rental applications. The 325G features enhanced visibility, convenient serviceability, and John Deere's patented Quik-Tatch system for quick attachment changes.

Key Features

• 74 gross hp (70 net hp) turbocharged Yanmar engine with 3.3L displacement

• Rated operating capacity of 2,590 lbs with 7,400 lb tipping load

• Vertical-lift boom geometry with 126.1-inch hinge pin height and 102.1-inch dump height

• Maximum travel speed of 8.2 mph with 320mm (12.6-inch) track width

• Bucket breakout force of 8,750 lbf and lift breakout force of 5,250 lbf

• 21-gallon fuel tank capacity for extended operation

• Standard hydraulic flow of 21 gpm (optional 32 gpm high-flow available)

• System pressure of 3,450 psi at couplers for powerful hydraulic performance

• ROPS/FOPS certified cab with optional air conditioning, heated seat, and rearview camera

• Patented John Deere Quik-Tatch system for fast attachment changes (Power Quik-Tatch optional)

• Operating weight of 9,500 lbs with standard tracks

• Ideal for landscaping, site preparation, material handling, and general construction tasks
